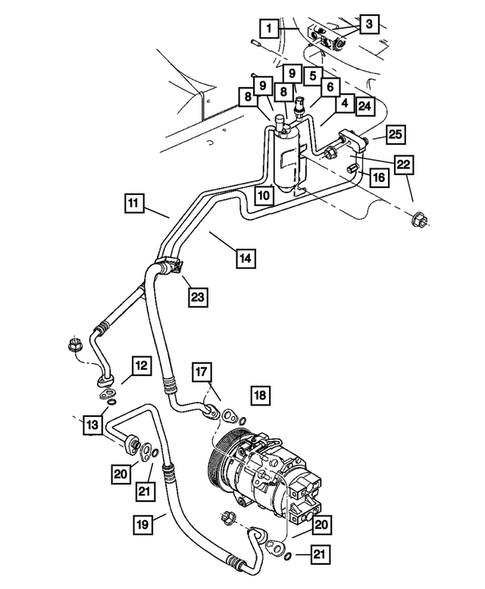

Air Conditioner and Heater Plumbing for 2005 Chrysler Pacifica
No.
Part # / Description / Price
Price
N/A
A/C Line Valve Core
Mopar
Mopar Notes: Engines: 3.5L V6 24V MPI ENGINE. 3.8L V6 OHV ENGINE.
Description: Valve core. Accumulator. After 12-01-03, After 12-12-03. Standard.
MSRP $31.95
$22.99
MSRP $31.95
$22.99
N/A
Air Conditioning Condenser Mopar
Mopar Notes: Engines: 3.5L V6 24V MPI ENGINE. 3.8L V6 OHV ENGINE.
Description: NOTE:25 pc min Qty Mix and Match Pallet Program only, Use mopar.com to order, Magneti-Marelli Parts tab.
N/A
A/C Line Valve Core Mopar
Mopar Notes: Engines: 3.5L V6 24V MPI ENGINE. 3.8L V6 OHV ENGINE.
Description: After 12-01-03, After 12-12-03. Standard.
N/A
Air Conditioning Condenser Mopar
Mopar Notes: Engines: 3.5L V6 24V MPI ENGINE. 3.8L V6 OHV ENGINE.
Description: NOTE:25 pc min Qty Mix and Match Pallet Program only, Use mopar.com to order, Magneti-Marelli Parts tab. Magneti-Marelli Offered By MOPAR, See Note.
N/A
MSRP $51.80
$35.54
1
Expansion Valve Kit Mopar
Mopar Description: Includes H-Valve to Evaporator O-Rings. Includes: Valve Mounting Screws, and Valve to Evaperator O-Rings. After 12/03/2003.
3
Expansion Valve O Ring Mopar
Mopar Description: 3/8. 3/4 inch, Red. Evaporator Side 10mm. 1/2 Evaporator to H-Valve. 1/2 Expansion Valve to Evaporator. Up to 02/29/12. Liquid. Valve to Evaperator. 10.25MM ID.
MSRP $12.70
$9.01
MSRP $12.70
$9.01
3
Expansion Valve O Ring Mopar
Mopar Description: [15.5mm]. [15mm]. 15.51mm ID 2.63mm Thick. 15.51mm ID 2.63 thick. 3/4 Evaporator to H-Valve. 3/4 Expansion Valve to Evaporator. Suction. Valve to Evaperator. 15.54MM ID.
4
A/C Liquid Line Mopar
Mopar Notes: Engines: 3.5L V6 24V MPI ENGINE. 3.8L V6 OHV ENGINE.
Description: Drier to Expansion Valve.
5
A/C Pressure Transducer Valve Mopar
Mopar Notes: Engines: 3.5L V6 24V MPI ENGINE. 3.8L V6 OHV ENGINE.
Description: Liquid Line. Includes: O-Ring. Up To 06/28/2010. Discharge Line. Includes Item # 4.
MSRP $175.00
$116.55
MSRP $175.00
$116.55
6
O Ring Mopar
Mopar Notes: Engines: 3.5L V6 24V MPI ENGINE. 3.8L V6 OHV ENGINE.
Description: Condenser. Transducer Mounting. Transducer to Line.
8
A/C Line O Ring Mopar
Mopar Notes: Engines: 3.5L V6 24V MPI ENGINE. 3.8L V6 OHV ENGINE.
Description: Drier. Outlet.
11
A/C Liquid Line Mopar
Mopar Notes: Engines: 3.5L V6 24V MPI ENGINE. 3.8L V6 OHV ENGINE.
Description: Drier to Condenser.
12
A/C Line Gasket Mopar
Mopar Notes: Engines: 3.5L V6 24V MPI ENGINE. 3.8L V6 OHV ENGINE.
Description: 1/2 inch.
13
O Ring Mopar
Mopar Notes: Engines: 3.5L V6 24V MPI ENGINE. 3.8L V6 OHV ENGINE.
Description: 1/2 inch. Liquid Line to Drier. Line to Condenser. Discharge line to Compressor.
16
A/C Check Valve Cap Mopar
Mopar Notes: Engines: 3.5L V6 24V MPI ENGINE. 3.8L V6 OHV ENGINE.
Description: [haa,had]. Accumulator.
17
A/C Suction And Liquid Gasket Mopar
Mopar Notes: Engines: 3.5L V6 24V MPI ENGINE. 3.8L V6 OHV ENGINE.
Description: 5/8 inch.
18
A/C Line O Ring Mopar
Mopar Notes: Engines: 3.5L V6 24V MPI ENGINE. 3.8L V6 OHV ENGINE.
Description: Suction Line to Expansion Valve. Suction Line to H-Valve. 5/8 Burgandy. 5/8 inch.
18
A/C Line O Ring Mopar
Mopar Notes: Engines: 3.5L V6 24V MPI ENGINE. 3.8L V6 OHV ENGINE.
Description: Suction Line to Expansion Valve. Suction Line to H-Valve. 5/8 Burgandy. Condenser End. Accumulator End. At Accumulator. 5/8 inch - Red. Suction Line to Compressor.
MSRP $10.10
$7.26
MSRP $10.10
$7.26
22
Hex Nut And Washer Mopar
Mopar Notes: Engines: 3.5L V6 24V MPI ENGINE. 3.8L V6 OHV ENGINE.
MSRP $11.30
$8.17
MSRP $11.30
$8.17
24
A/C Line Seal Mopar
Mopar Notes: Engines: 3.5L V6 24V MPI ENGINE. 3.8L V6 OHV ENGINE.
Description: 1/2 inch.

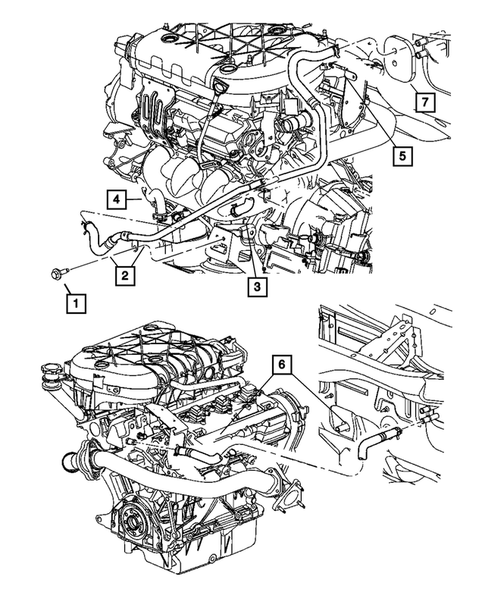

No.
Part # / Description / Price
Price
1
Hex Head Screw And Washer Mopar
Mopar Notes: Engines: 3.5L V6 24V MPI ENGINE.
Description: M6x1x25. Fender Attaching. Heater hose & tube assy to motor mt. With Tube. Heater Hose And Tube Assembly.
6
Heater Hose Mopar
Mopar Notes: Engines: 3.5L V6 24V MPI ENGINE. 3.8L V6 OHV ENGINE.
Description: Engine to Core.
