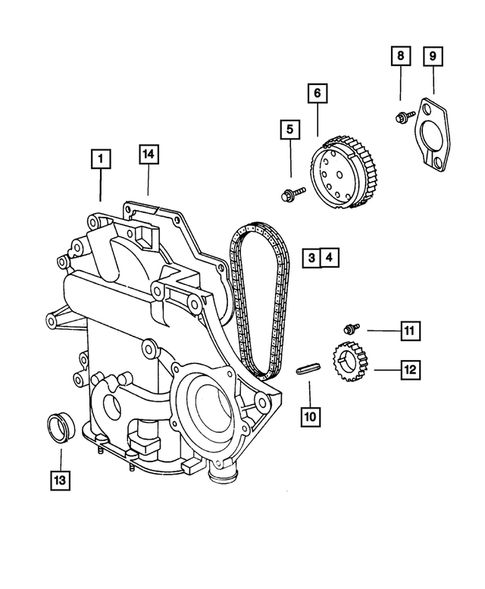

Timing Chain and Cover for 2005 Chrysler Town & Country
No.
Part # / Description / Price
Price
N/A
Hex Head Bolt And Coned Washer, Mounting
Mopar
Mopar Notes: Engines: 3.3L V6 OHV ENGINE. 3.3L V6 OHV FFV ENGINE. 3.8L V6 OHV ENGINE.
Description: [m8x1.25x80.00]. Timing Cover To Engine Block. Chain Case Cover attaching. Timing Case Cover attaching. Bracket Assy. To Frame. Chain Case Cover To Cylinder Block.
MSRP $3.40
$2.36
MSRP $3.40
$2.36
N/A
Hex Head Screw And Washer Mopar
Mopar Notes: Engines: 2.4L I4 DOHC 16V SMPI ENGINE. 3.3L V6 OHV ENGINE. 3.3L V6 OHV FFV ENGINE. 3.8L V6 OHV ENGINE.
Description: Alternator Pivot. Timing Cover To Engine Block. Clutch Slave Cylinder. Chain Case Cover. Front Timing Cover To Cylinder Block[M8x1.25x45.00]. P/S Pump to P/S Pump Bracket Mtg. Catalytic Converter to Manifold. To Alternator Bracket. Front Pipe To Exhaust Manifold.
MSRP $11.10
$7.99
MSRP $11.10
$7.99
N/A
Dowel Pin Mopar
Mopar Notes: Engines: 3.3L V6 OHV ENGINE. 3.3L V6 OHV FFV ENGINE. 3.8L V6 OHV ENGINE. Transmissions: 4-SPEED AUTOMATIC TRANSMISSION.
MSRP $8.75
$6.23
MSRP $8.75
$6.23
N/A
Hex Head Screw And Washer, Timing Belt Cover To Head Left Mopar
Mopar Notes: Engines: 3.3L V6 OHV ENGINE. 3.3L V6 OHV FFV ENGINE. 3.8L V6 OHV ENGINE.
Description: M10x1.5x85. Chain Cover Attach. Timing Cover To Engine Block. Inner Timing Cover To Cylinder Head. Cover To Cylinder Block.
MSRP $6.50
$4.66
MSRP $6.50
$4.66
1
Engine Timing Cover Package 1 Mopar
Mopar Notes: Engines: 3.3L V6 OHV ENGINE. 3.3L V6 OHV FFV ENGINE. 3.8L V6 OHV ENGINE.
Description: ENGINE TIMING
1
Engine Timing Cover Package Mopar
Mopar Notes: Engines: 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE.
Description: [-xzz]. Includes Chain, Camshaft Sprocket, Crankshaft Gear And Thrust Plate. With Alternator mounting. Also includes Oil Pan Gasket and Pickup tube seal. Includes Chain, Sprockets, & Thrust Plate. Includes All Parts In The Box less Bolts And Dowel.
1
Engine Timing Cover Package Mopar
Mopar Notes: Engines: 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE.
Description: [-xzz]. Also includes Oil Pan Gasket and Pickup tube seal.
3
Timing Chain Package Mopar
Mopar Notes: Engines: 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE.
Description: [-xzz].
4
5
Hex Head Screw And Washer, Mounting Mopar
Mopar Notes: Engines: 3.3L V6 OHV ENGINE. 3.3L V6 OHV FFV ENGINE. 3.8L V6 OHV ENGINE.
Description: M10x1.5x40. Pinion Nose To Transmission. Camshaft Sprocket. Strut To Transmission.
6

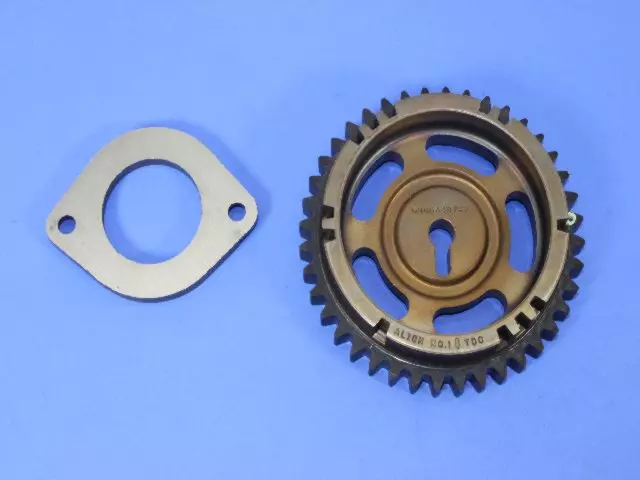

Camshaft Sprocket Package Mopar
Mopar Notes: Engines: 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE.
Description: [-xzz].
6
Camshaft Sprocket Package Mopar
Mopar Notes: Engines: 3.3L V6 OHV ENGINE. 3.3L V6 OHV FFV ENGINE. 3.8L V6 OHV ENGINE.
Description: Includes Thrust Plate. Includes Items 3, 6.
MSRP $88.00
$58.39
MSRP $88.00
$58.39
8
Multi Purpose Bracket Mopar
Mopar Notes: Engines: 3.3L V6 OHV ENGINE. 3.3L V6 OHV FFV ENGINE. 3.8L V6 OHV ENGINE.
9
Camshaft Thrust Plate Mopar
Mopar Notes: Engines: 3.3L V6 OHV ENGINE. 3.3L V6 OHV FFV ENGINE. 3.8L V6 OHV ENGINE.
10
Crankshaft Sprocket Dowel Mopar
Mopar Notes: Engines: 3.3L V6 OHV ENGINE. 3.3L V6 OHV FFV ENGINE. 3.8L V6 OHV ENGINE.
Description: Crankshaft Sprocket.
MSRP $8.75
$6.23
MSRP $8.75
$6.23
12
Crankshaft Gear Mopar
Mopar Notes: Engines: 3.3L V6 OHV ENGINE. 3.3L V6 OHV FFV ENGINE. 3.8L V6 OHV ENGINE.
MSRP $43.70
$29.84
MSRP $43.70
$29.84
12
13
Front Main Crankshaft Seal Mopar
Mopar Notes: Engines: 3.3L V6 OHV ENGINE. 3.3L V6 OHV FFV ENGINE. 3.8L V6 OHV ENGINE.
Description: Front.
MSRP $26.25
$19.06
MSRP $26.25
$19.06
14
Chain Case Cover Gasket Mopar
Mopar Notes: Engines: 3.3L V6 OHV ENGINE. 3.3L V6 OHV FFV ENGINE. 3.8L V6 OHV ENGINE.
1 This price excludes a refundable manufacturer's core charge. Add the part to your cart to see the core charge.
