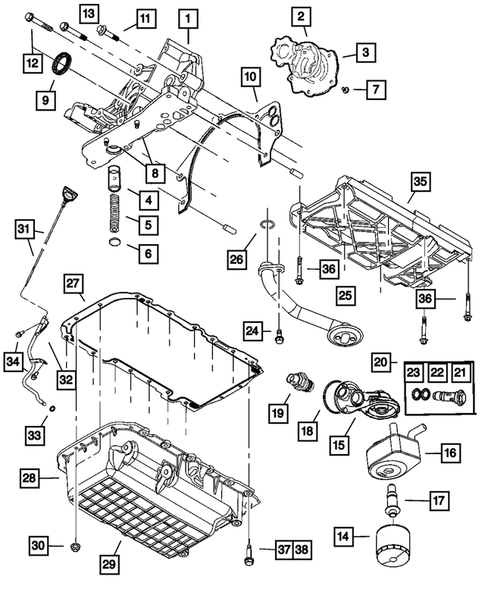

Engine Oiling for 2006 Chrysler Pacifica
No.
Part # / Description / Price
Price
1
Engine Oil Pump
Mopar
Mopar Notes: Engines: 3.5L V6 24V MPI ENGINE.
Description: See Note For Build Date Info. Build Date Codes Are listed On Intake Plenum Tag.. After build date tdde92373xxxxx.
7
Flange Head Screw Mopar
Mopar Notes: Engines: 3.5L V6 24V MPI ENGINE.
Description: M6x1x18. Oil Pump Cover Attaching. Oil Pump Back Cover To Oil Pump. M6x1.00x18.00. Oil Pump Cover To Front Timing Case Cover.
8
Double Ended Stud, Mounting Mopar
Mopar Notes: Engines: 3.5L V6 24V MPI ENGINE.
Description: M8x1.25x35.00. [M8x1.25x42.0]. Oil Pump Back Cover To Oil Pump Body. M8x1.25x42.00. Oil Pick Up Tube. Oil Pump To Pan.
8
Stud, Oil Pan Mopar
Mopar Notes: Engines: 3.5L V6 24V MPI ENGINE.
Description: [M8x1.25x42.0]. Oil pump to pan. M8x1.25x42.00.
9
Front Main Crankshaft Seal Mopar
Mopar Notes: Engines: 3.5L V6 24V MPI ENGINE. 3.8L V6 OHV ENGINE.
Description: Front.
MSRP $26.25
$19.06
MSRP $26.25
$19.06
10
Oil Pump Gasket Mopar
Mopar Notes: Engines: 3.5L V6 24V MPI ENGINE.
Description: Build Date Codes Are listed On Intake Plenum Tag. Up To And Including Build Date TDDE92363XXXXX.
MSRP $20.60
$14.76
MSRP $20.60
$14.76
11
Hex Head Bolt And Washer, Mounting Mopar
Mopar Notes: Engines: 3.5L V6 24V MPI ENGINE.
Description: M10x1.50x70. Oil Pump Body To Cylinder Block.
12
Hex Head Bolt And Washer, Mounting Mopar
Mopar Notes: Engines: 3.5L V6 24V MPI ENGINE.
Description: Oil Pump Body To Cylinder Block. M8x1.25x55.00. Intake Manifold To Cylinder Head. Fuel Rail to Intake Manifold.
13
MSRP $9.30
$6.72
14
Engine Oil Filter Mopar
Mopar Notes: Engines: 3.5L V6 24V MPI ENGINE. 3.8L V6 OHV ENGINE.
Description: See Note. [3/4-16] With Engine Production Part Number 04892603AA Or 04892480AA.
MSRP $11.15
$8.05
MSRP $11.15
$8.05
17
Engine Oil Cooler Connector Mopar
Mopar Notes: Engines: 3.5L V6 24V MPI ENGINE.
Description: ENGINE OIL COOLER
19
Oil Pressure Switch Mopar
Mopar Notes: Engines: 3.5L V6 24V MPI ENGINE. 3.8L V6 OHV ENGINE.
Description: Includes Valve and Quick Connect. 4792355 Serviced in Valve Pkg. Contains Valve and Quick Connect.
MSRP $55.60
$38.24
MSRP $55.60
$38.24
24
Hex Head Screw And Washer Mopar
Mopar Notes: Engines: 3.5L V6 24V MPI ENGINE.
Description: M8x1.25x25.25. Oil Pickup Tube To Oil Pump. M8x1.25x25.00. Engine Oil Pick Up Tube To Engine Oil Pump. Oil Pickup Tube To Chain Case Cover.
MSRP $11.00
$7.93
MSRP $11.00
$7.93
27
Oil Pan Gasket Mopar
Mopar Notes: Engines: 3.5L V6 24V MPI ENGINE.
Description: Build Date Codes Are listed On Intake Plenum Tag. After build date tdde92373xxxxx.
28
Oil Pan Mopar
Mopar Notes: Engines: 3.5L V6 24V MPI ENGINE.
Description: Build Date Codes Are listed On Intake Plenum Tag. Stamping # 04792661AC After Build Date TDDE92373XXXXX.
29
Oil Drain Plug Mopar
Mopar Notes: Engines: 3.5L V6 24V MPI ENGINE. 3.8L V6 OHV ENGINE.
Description: 170 hp. With Gasket. For 05184513AC Oil Pan. Use 10-23-02 And After. Use 10-28-02 And After. [M14x1.50x21.50].
MSRP $15.85
$11.50
MSRP $15.85
$11.50
30
Hex Nut And Washer Mopar
Mopar Notes: Engines: 3.5L V6 24V MPI ENGINE. 3.8L V6 OHV ENGINE.
MSRP $11.30
$8.17
MSRP $11.30
$8.17
31
MSRP $30.05
$21.54
34
Tapping Hex Flange Head Screw Mopar
Mopar Notes: Engines: 3.5L V6 24V MPI ENGINE. 3.8L V6 OHV ENGINE.
MSRP $3.40
$2.36
MSRP $3.40
$2.36
36
Hex Flange Head Bolt, Mounting Mopar
Mopar Notes: Engines: 3.5L V6 24V MPI ENGINE.
Description: [M10x1.5x100.00]. M10x1.50.100.00. M10x1.50x100.00. [M10x1.5x100.0]. Main Bearing Cap To Cylinder Inner.
MSRP $8.25
$5.87
MSRP $8.25
$5.87
37
Hex Flange Head Bolt Mopar
Mopar Notes: Engines: 3.5L V6 24V MPI ENGINE.
Description: Child Tether Attach. Oil Pan To Engine Block. M8x35. m8x1.25x35.00 Oil Pan Attach. M8x35. [M8x1.25x35.0]. Oil Pan To Cylinder Block.
38
Hex Head Bolt And Washer, Mounting Mopar
Mopar Notes: Engines: 3.5L V6 24V MPI ENGINE.
Description: Oil Pan To Rear Retainer. [M6x1.0x23.0]. M6x1.00x23.00.
