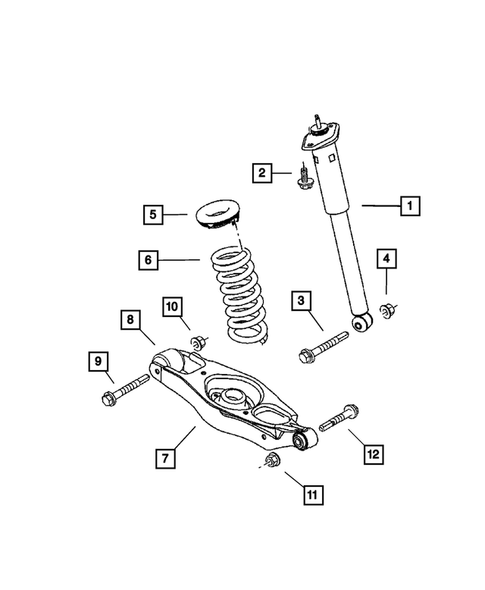

Rear Suspension for 2006 Chrysler Pacifica
No.
Part # / Description / Price
Price
2
Hex Head Bolt And Washer
Mopar
Mopar Description: M10x1.50x42.00. Extension to Rear Rail. Shock absorber to body.
MSRP $4.95
$3.51
MSRP $4.95
$3.51
3
Hex Head Bolt And Washer Mopar
Mopar Description: Camber Link to Knuckle. Tension Link to Knuckle. M12x1.75x85. Shock Absorbor to Spring Link. Shock absorber to spring link.
MSRP $12.20
$8.71
MSRP $12.20
$8.71
9
Hex Flange Head Lock Bolt Mopar
Mopar Description: Torque Strut To Supension Crossmember. Torque Strut To Suspension Crossmember. M12x1.75x110.00. Front Pivot Mounting. LCA Front Pivot. Spring Link to Frame.
MSRP $9.10
$6.59
MSRP $9.10
$6.59
10
Nut And Washer Mopar
Mopar Description: Camber Link to Frame. Compression Link to Knuckle/Frame. Spring Link to Frame. Tension Link to Frame. Toe Link to Knuckle.
11
Hex Lock Nut, Mounting Mopar
Mopar Description: Lower Shock To Knuckle Rear. Spring Link to Knuckle. UCA Pivot Bar Bolt and Retainer.
MSRP $4.95
$3.51
MSRP $4.95
$3.51
12
Hex Head Bolt Mopar
Mopar Description: M14x2.00x120.00. If a different Bolt Length is needed, use Item #11. Lower Control Arm to Knuckle. Spring link to knuckle. Front Lower Control Arm to Cradle.
MSRP $21.50
$15.43
MSRP $21.50
$15.43
2 This part contains hazardous materials. Extra shipping costs apply.
No.
Part # / Description / Price
Price
2
Hex Head Bolt And Washer Mopar
Mopar Description: Engine Mount To Front Axle. M12x1.75x70. RR Shock Absorber To Shock Mount. Track bar to axle bracket. Stabilizer Bar To Cradle. Engine Mount To Engine Mount Bracket. Compression link to subframe. Camber Link To Subframe. Tension Link To Subframe.
MSRP $11.45
$8.17
MSRP $11.45
$8.17
3
Hex Head Bolt And Washer Mopar
Mopar Description: Camber Link to Knuckle. Tension Link to Knuckle. M12x1.75x85. Shock Absorbor to Spring Link. Shock absorber to spring link.
MSRP $12.20
$8.71
MSRP $12.20
$8.71
4
Nut And Washer Mopar
Mopar Description: Camber Link to Frame. Compression Link to Knuckle/Frame. Spring Link to Frame. Tension Link to Frame. Toe Link to Knuckle.
5
Hex Nut And Washer Mopar
Mopar Description: M12x1.75. Tension Link to Knuckle. Camber Link To Knuckle.
MSRP $6.50
$4.66
MSRP $6.50
$4.66
8
MSRP $14.35
$10.29
14
Hex Head Bolt And Washer Mopar
Mopar Description: M12x1.75x75.00. Engine Mount To Left Axle Bracket. Engine Mount To Right Axle Bracket. Shock Mounting. Torque Rod Bracket to Transmission. Shock to LCA. Compression link to knuckle. Camber Screw Toe Link to Frame. Shock to Shock Tower. Shock Lower.
MSRP $8.40
$5.99
MSRP $8.40
$5.99
22
MSRP $18.95
$13.61
No.
Part # / Description / Price
Price
2
Hex Head Bolt And Washer Mopar
Mopar Notes: Engines: 3.5L V6 24V MPI ENGINE. 3.8L V6 OHV ENGINE.
Description: Mexico.
MSRP $4.65
$3.33
MSRP $4.65
$3.33
6
Hex Head Bolt And Coned Washer Mopar
Mopar Notes: Engines: 3.5L V6 24V MPI ENGINE.
Description: M10x1.50x60.00. Winch To Bracket. Front Bearing to Knuckle. Starter Motor to Engine Block. Sway Bar Link to Sway Bar. Hub bearing to knuckle. Frt knuckle to bearing.
MSRP $48.90
$33.47
MSRP $48.90
$33.47
8
Hex Head Screw And Washer Mopar
Mopar Description: M10x1.50x75.00. M10x1.5x75. Sway Bar Link to Knuckle. Rear Stabilizer Link To Knuckle.
MSRP $7.45
$5.26
MSRP $7.45
$5.26
